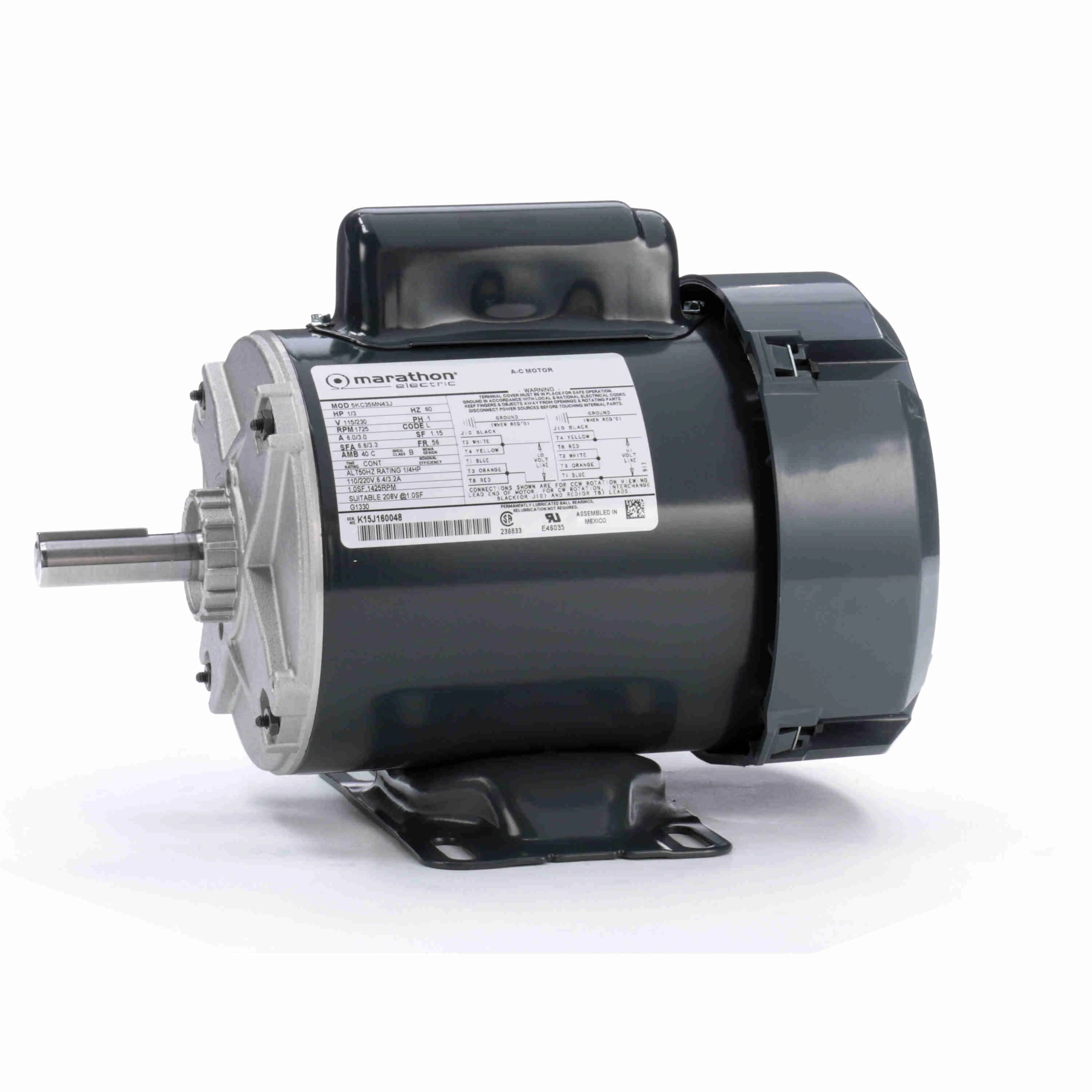

MARATHON MOTORS 5KC35MN43 Motor 1/3 Hp 1725 Rpm 115/230v | AD4URV 44D118 / G1330

LEESON 5KC35MN43 G1330 / 5KC35MN43J General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AD4URV Model: 5KC35MN43Cross Ref: 44D118 / G1330 / 5KC35MN43J
In Stock

Get it by Wednesday, Dec 4

€399.06 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemGeneral Purpose Motor
BearingsBall
Capacitor RequiredNo
DutyContinuous
Efficiency GroupStandard
Frame56
Frame MaterialRolled Steel
Full Load Amps6.0/3.0
HP1/3
Hz60
Insulation ClassB
Inverter RatedNo
Length Less Shaft9 1/16"
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise, Counter Clockwise
Motor Thermal ProtectionNone
MountingBase
Nameplate RPM1725
Nominal Efficiency57.7%
Number of Speeds1
Overall Length10 15/16"
Phase1
RotationCW/CCW
RPM Group1701-1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.5/8"
Shaft Length1.875"
Voltage115/230
Warranty1 Years

Shipping Info:

Ship weight (kg) 8.64
Ship height (cm)24.13
Ship length (cm)39.22
Ship width (cm)25.88
HS code8501404040
Country of OriginMX

Product Variants

ProductModelFrameFull Load AmpsHPkWLength Less ShaftMotor DesignMotor Mounting PositionMotor Shaft DesignPrice
MARATHON MOTORS 5KCR48WN6066 General Purpose Motor Cap Start/cap Run Tefc 3/4 Hp 1140 Rpm 56 | AC2GJR 2K599 / C271 5KCR48WN60665610.6/5.33/4--Capacitor-Start/Capacitor-RunAll AngleKeyed€923.38
MARATHON MOTORS 5KC32GN19 Motor 1/4 Hp 1725 Rpm 115/230v | AD4URP 44D113 / G1312 5KC32GN19565.4/2.71/4-8.5"Capacitor-StartHorizontalKeyed€358.11
MARATHON MOTORS 5KC35MN43X Motor 1/3 Hp 1725 Rpm 115/230v | AD4URW 44D119 / G1331 5KC35MN43X566.0/3.01/3-9 1/16"Capacitor-StartHorizontalKeyed€415.56
MARATHON MOTORS 5KC42GN0014 Motor 1/2 Hp 1725 Rpm 115/208-230v | AD4URZ 44D122 / C261 5KC42GN0014568.6/4.1-4.31/2-9.125"Capacitor-StartHorizontalKeyed€450.39
MARATHON MOTORS 5KC42GN0014X Motor 1/2 Hp 1725 Rpm 115/230v | AD4UTA 44D123 / C262 5KC42GN0014X568.6/4.31/2-9.125"Capacitor-StartHorizontalKeyed€478.51
MARATHON MOTORS 5KC46PN0015X Motor 3/4 Hp 1725 Rpm 115/230v | AD4UTD 44D126 / C269 5KC46PN0015X5611.0/5.53/4-9 15/16"Capacitor-StartHorizontalKeyed€586.67
MARATHON MOTORS 5KC49UN6065 Motor 1/2 Hp 1140 Rpm 115/230v | AD4UTH 44D130 / C264 5KC49UN6065569.4/4.71/2-11 1/16"Capacitor-StartHorizontalKeyed€774.28
