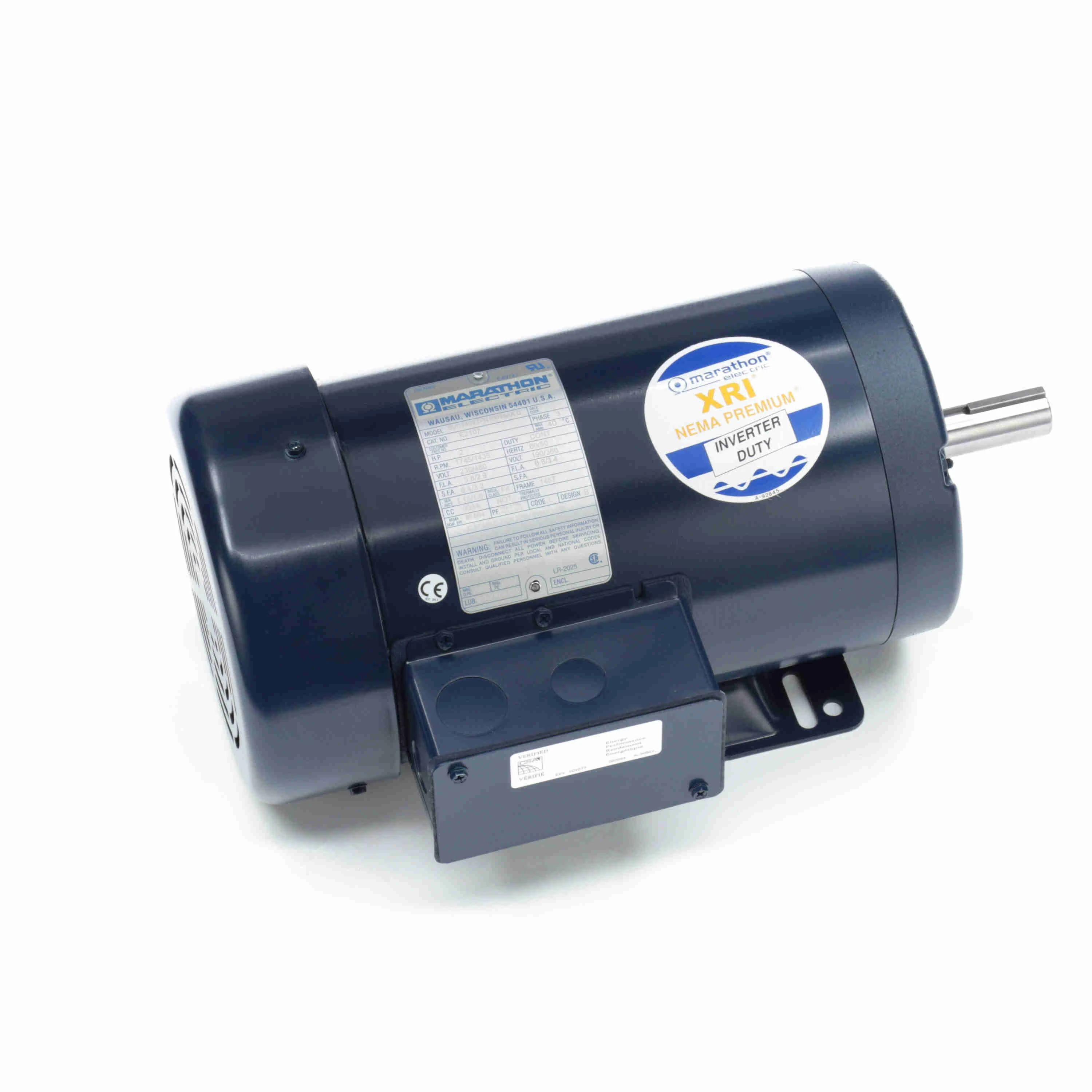

MARATHON MOTORS 145TTFR16035 Motor 3-phase 2 Hp 1745 Rpm 208-230/460v | AD6ELK 44Z435 / E2107

LEESON 145TTFR16035 E2107 / 145TTFR16035AA General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AD6ELK Model: 145TTFR16035Cross Ref: 44Z435 / E2107 / 145TTFR16035AA
In Stock

Get it by Friday, May 23

€748.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ambient Temp.40°C
Base TypeRigid Base
Bearing TypeBall
Capacitor RequiredNo
Cc NumberCC003A
Duty CycleContinuous
Efficiency86.5%
Efficiency GroupNEMA Premium
Frame145T
Frame MaterialRolled Steel
Frequency50/60 Hz
Full Load Amps5.8-6/2.9A
Hp2 hp
Insulation ClassClass F
Inverter Ratedyes
Length Less Shaft12 3/8"
Max. Ambient Temp.104°F
Motor ApplicationGeneral Application
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm1745 RPM
No. Of Speeds1
Number Of Speeds1
Overall Length14 3/4"
Phase3
Rpm Range1701-1800 RPM
Service Factor1.15
Shaft Dia.7/8"
Shaft Length2 3/8"
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vNo
Voltage208-230/460V AC
Warranty1 yr.

Shipping Info:

Ship weight (kg) 22.05
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
HS code8501524000
Country of OriginUS

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMotor TypeFrameAmbient Temp.Price
MARATHON MOTORS 143TTFN16040 Motor 1 Hp 1735 Rpm 230/460v 143t | AD4BHT 40Z948 / E2201-P 143TTFN16040230/460V AC1735 RPM1 hp50/60 Hz3/1.5AThree Phase143T40°C€884.66
MARATHON MOTORS 145TTFN16045 Motor 2 Hp 1755 Rpm 230/460v 145t | AD4BHV 40Z950 / E2207-P 145TTFN16045230/460V AC1755 RPM2 hp50/60 Hz2AThree Phase145T40°C€971.09
MARATHON MOTORS 143TTFR15642 Motor 3-phase 1 Hp 1760 Rpm 208-230/460v | AD6EKX 44Z415 / E2101 143TTFR15642208-230/460V AC1760 RPM1 hp50/60 Hz1.6/3.2AThree Phase143T40°C€636.49
MARATHON MOTORS 145TTFR16033 Motor 3-phase 1.5 Hp 1750 Rpm 208-230/460v | AD6ELB 44Z422 / E2104 145TTFR16033208-230/460V AC1750 RPM1 1/2 hp50/60 Hz4.6-4.8/2.4AThree Phase145T40°C€733.41
MARATHON MOTORS 145TTFR16078 Motor 3-phase 1 Hp 1170 Rpm 208-230/460v | AD6ELE 44Z425 / E2102 145TTFR16078208-230/460V AC1170 RPM1 hp50/60 Hz3.8/1.9AThree Phase145T40°C€741.44
MARATHON MOTORS 145TTFR13002 Motor 3-phase 2 Hp 3490 Rpm 208-230/460v | AD6ELJ 44Z432 / E2106 145TTFR13002208-230/460V AC3490 RPM2 hp50/60 Hz4.8-5.2/2.4AThree Phase145T40°C€816.13
MARATHON MOTORS 254TTFL16026 Motor 3-phase 15 Hp 1775 Rpm 230/460v | AD6ENK 44Z506 / E2122 254TTFL16026230/460V AC1775 RPM15 hp50/60 Hz37.5/18.8AThree Phase254T104°F€2,213.33
