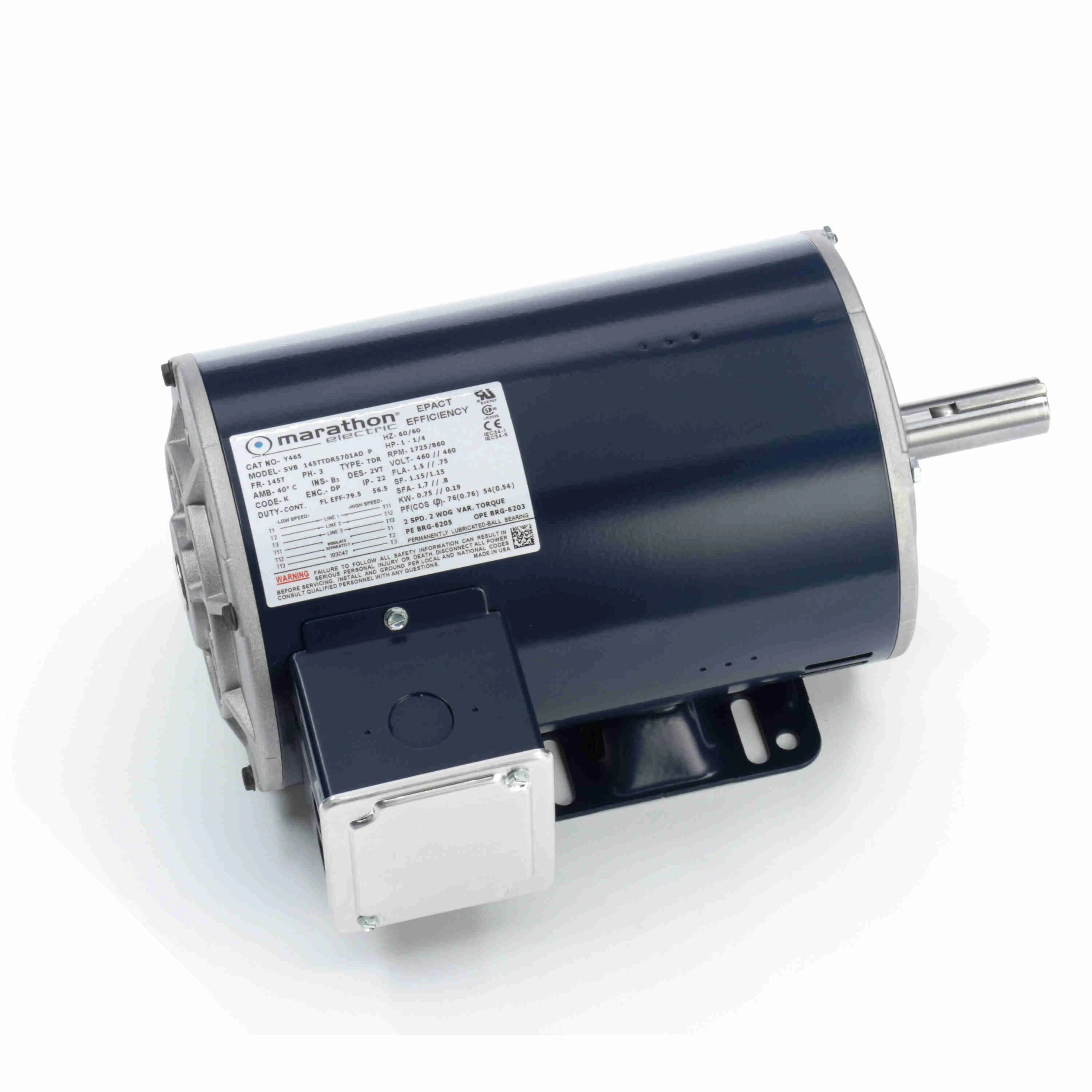

MARATHON MOTORS 145TTDR5701 Motor, 2-speed 2-winding 3-phase Drip Proof 1-1/4hp | AF6JUX 19RW32 / Y465

LEESON 145TTDR5701 Y465 / 145TTDR5701AD Motor, 1 and 0.25 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM

Item: AF6JUX Model: 145TTDR5701Cross Ref: 19RW32 / Y465 / 145TTDR5701AD
In Stock

Get it by Friday, Nov 15

€1,279.67 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemBelt Drive Motor
BearingsBall
DutyContinuous
Frame145T
Frame MaterialRolled Steel
Full Load Amps1.5/0.75
HP1, 1/4
Hz60
Insulation ClassB
Max. Ambient Temp.40 Degrees C
Motor ApplicationH Vac/R
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationBelt Dr Fan/Blower
Motor Thermal ProtectionNone
Nameplate RPM1725/860
Nominal Efficiency79.5%
Number of Speeds2
Overall Length13"
Phase3
RPM Range1701-1800
Service Factor1.15
Shaft Dia.7/8"
Shaft Length2.25"
Voltage460

Shipping Info:

Ship weight (kg) 18.9
Ship height (cm)20.62
Ship length (cm)41.61
Ship width (cm)26.67
HS code8501524000
Country of OriginMX

Product Variants

ProductModelFull Load AmpsHPNameplate RPMNominal EfficiencyOverall LengthPrice
MARATHON MOTORS 145TTDR5702 Motor, 2-speed 2-winding 3-phase 1-1/2 And 3/8 Hp | AF6JUY 19RW33 / Y466 145TTDR57022.2/1.11-1/2, 3/81740/88578.5%13.5"€1,405.56
