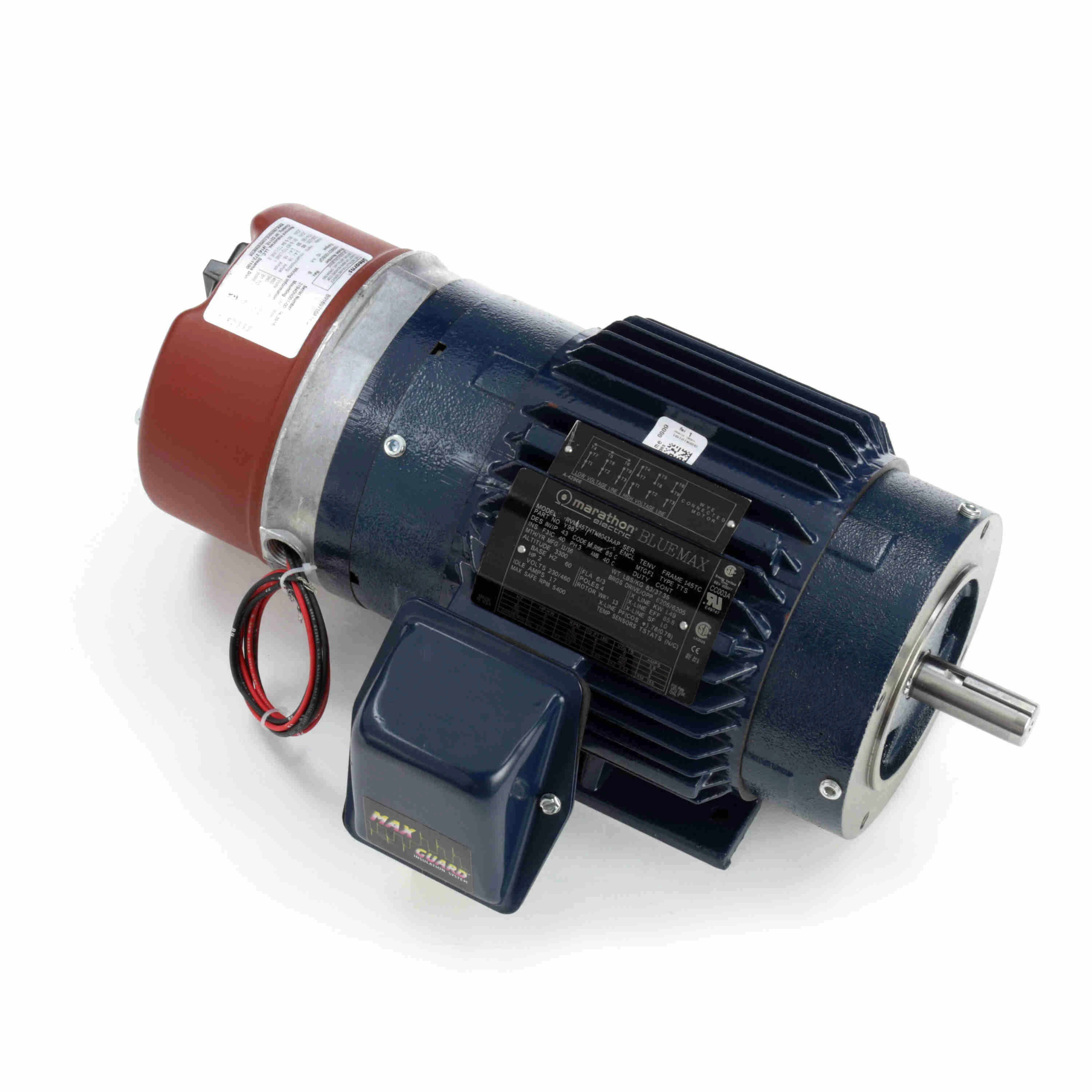

MARATHON MOTORS 145THTN8043 Vector Motor 3-phase 2 Hp 230/460v | AF8KFU 26VT65 / Y987

LEESON 145THTN8043 Y987 / 145THTN8043AA Inverter Duty Brake Motor, 2 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM

Item: AF8KFU Model: 145THTN8043Cross Ref: 26VT65 / Y987 / 145THTN8043AA
In Stock

Get it by Friday, Dec 13

€2,785.94 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemVector Motor
Ambient Temp. Range40 Degrees C
BaseRigid
BearingsBall
DutyContinuous
Efficiency GroupEpact
Encoder AcceptableYes
Encoder Shaft5/8" x 2-1/16"
FinishBlue Enamel
Frame145Tc
Frame MaterialCast Iron
Full Load Amps6.0/3.0
HP2
Hz60
Insulation ClassF
Insulation FeatureClass F
Max. Operating Frequency120 Hz
Max. Speed5400 RPM
Motor ApplicationCranes
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionT-stat
Nameplate RPM1750
NEMA DesignA
Nominal Efficiency85.5
Overall Length18"
Phase3
RPM Range1701-1800
Service Factor1.00
Shaft Dia.7/8"
Shaft Length2.125"
Speed Range2000:1 CT
Thermal ProtectionT-stat
Torque10 lb.-ft.
Voltage230/460
Warranty3 yr.

Shipping Info:

Ship weight (kg) 37.35
Ship height (cm)32.05
Ship length (cm)50.01
Ship width (cm)31.27
HS code8501524000
Country of OriginMX

Product Variants

ProductModelEfficiency GroupFrameFull Load AmpsHPNameplate RPMOverall LengthTorquePrice
MARATHON MOTORS 143THTN8036 Vector Motor 3-phase 1hp 230/460v | AF8KFT 26VT64 / Y986 143THTN8036Premium143TC3.0/1.51175617"6 lb.-ft.€2,500.65
