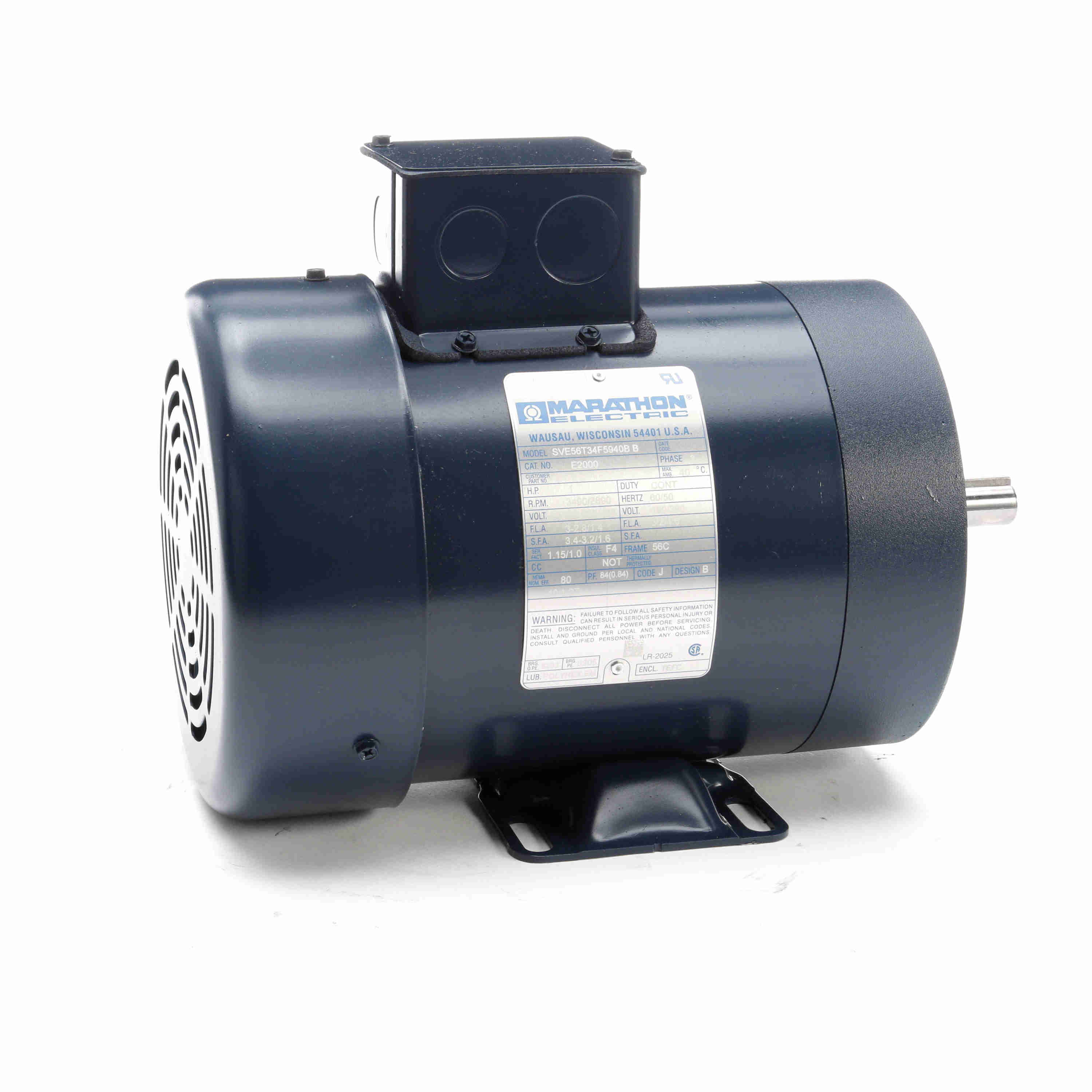

MARATHON MOTORS 056T34F5940 Motor 3-phase 1 Hp 3490 Rpm 208-230/460v | AD6EDM 44Z258 / E2000

LEESON 056T34F5940 E2000 / 56T34F5940B General Purpose Motor, 1 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM

Item: AD6EDM Model: 056T34F5940Cross Ref: 44Z258 / E2000 / 56T34F5940B
In Stock

Get it by Friday, May 23

€976.65 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
Base TypeRigid Base
Bearing TypeBall
Capacitor RequiredNo
Cc NumberCC003A
Duty CycleContinuous
Efficiency80%
Efficiency GroupNEMA Premium
Frame56C
Frame MaterialRolled Steel
Frequency50/60 Hz
Full Load Amps2.8-3/1.4A
Full Load Amps @ 50hz2.8-3/1.4A
Hp1 hp
Insulation ClassClass F
Inverter RatedYes
Length Less Shaft9 5/8"
Max. Ambient Temp.104°F
Motor ApplicationGeneral Application
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor TypeThree Phase
Mounting TypeFace, Base
Nameplate Rpm3490 RPM
No. Of Speeds1
Overall Length11 11/16"
Phase3
Rpm Range3001-3600 RPM
Service Factor1.15
Shaft Dia.5/8"
Shaft Length2 1/16"
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vYes
Voltage208-230/460V AC
Warranty1 yr.

Shipping Info:

Ship weight (kg) 11.205
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
HS code8501524000
Country of OriginUS
