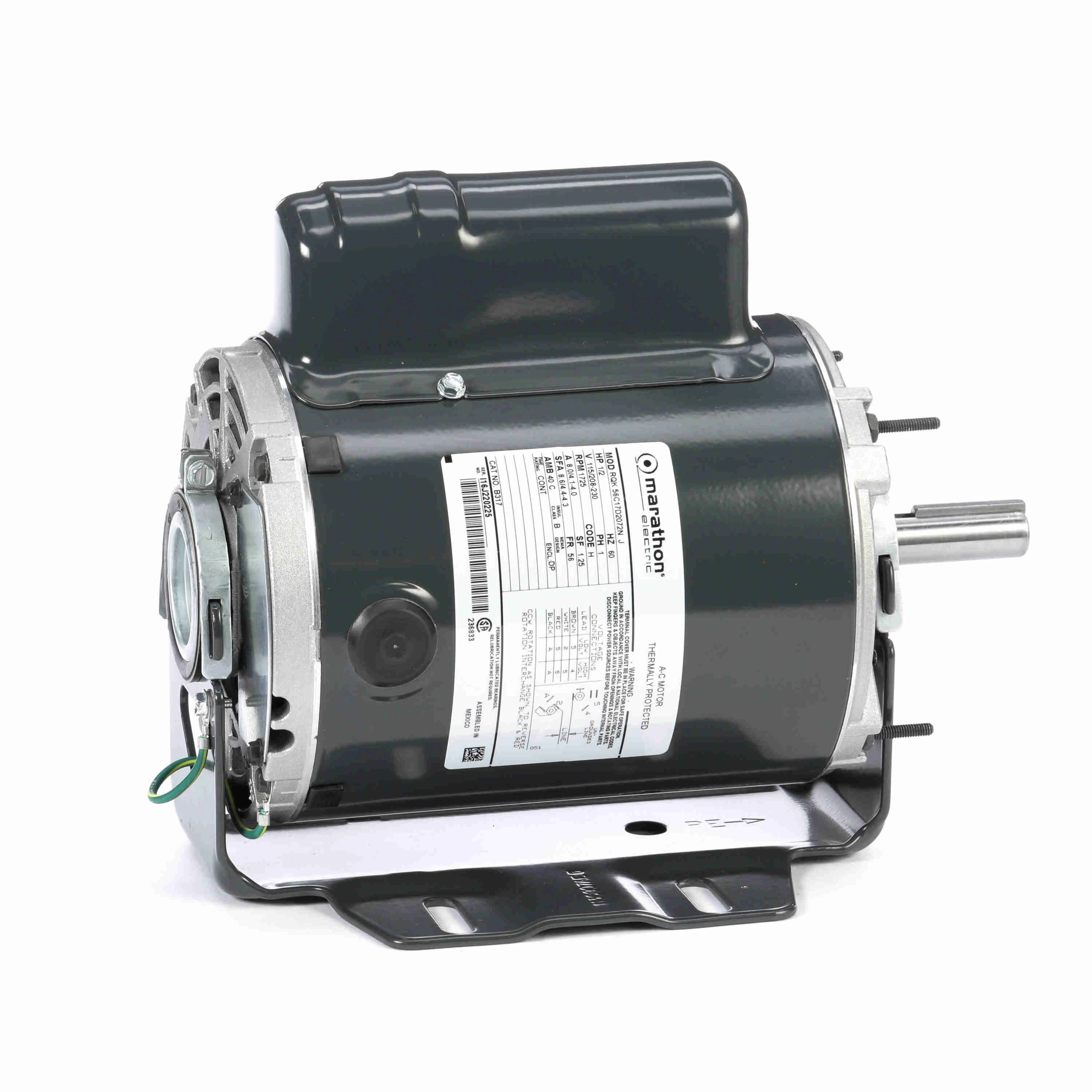

MARATHON MOTORS 056C17D2072 B317 Single Phase Motor | AJ2KYE 46N369 / B317

LEESON 056C17D2072 B317 / 56C17D2072N General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM

Item: AJ2KYE Model: 056C17D2072Cross Ref: 46N369 / B317 / 56C17D2072N
In Stock

Get it by Friday, May 23

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€328.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemHVAC Motor
Ambient Temp.40°C
AssemblyF1 Only
Bearing TypeBall
Conduit Box PositionF1 Only
Duty CycleContinuous
Efficiency66%
Enclosure TypeDripproof
Frame56
Frame MaterialSteel
Frequency60 Hz
Full Load Amps8/4-4.1A
Hp1/2 hp
Insulation ClassClass B
Inverter RatedNo
Length Less Shaft8 7/16"
Max. Ambient Temp.104°F
Motor ApplicationGeneral Application
Motor Enclosure DesignOpen Dripproof
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor TypeCapacitor Start
Mounting TypeResilient Base Extended Studs
Nameplate Rpm1800 RPM
Nema DesignNo Design Code
Number Of Speeds1
Overall Length10 5/16"
Phase1
Power0.37 kW
Rpm Range1701-1800 RPM
Service Factor1.25
Shaft Dia.5/8"
Shaft Length1 7/8"
Shaft OrientationHorizontal
Thermal ProtectionAutomatic
Usable @ 200vNo
Usable @ 208vYes
Voltage115/208-230V AC
Warranty1 yr.

Shipping Info:

Ship weight (kg) 9
Ship height (cm)24.13
Ship length (cm)34.77
Ship width (cm)18.57
HS code8501404040
Country of OriginMX

Product Details:

    • Starting Type: CAP START IND RUN
    • KVA Code: H
    • Drive End Bearing: BALL
    • IP Code: 22
    • Opposite End Bearing: BALL

Product Variants

ProductModelVoltageHpFrameMotor Mounting PositionShaft LengthMotor Enclosure DesignMax. Ambient Temp.Motor ApplicationPrice
MARATHON MOTORS 5KCR48TN3084X Motor 1 1/3 Hp 1725/1140 Rpm 208-230v | AD6NYC 46N398 / C1479 5KCR48TN3084X208-230V AC1 hp, 1/3 hp56HHorizontal1 7/8"Open Dripproof122°FGeneral Application€1,009.98
MARATHON MOTORS 5KCR49PN3011 Motor 3/4 1/4 Hp 1725/1140 Rpm 115v Auto | AD6NYD 46N399 / C420 5KCR49PN3011115V AC3/4 hp, 1/4 hp56Horizontal1 7/8"--General Application€764.89
MARATHON MOTORS 5KCR49PN3011X Motor 3/4 1/4 Hp 1725/1140 Rpm 115v None | AD6NYE 46N401 / C474 5KCR49PN3011X115V AC3/4 hp, 1/4 hp56Horizontal1 7/8"Open Dripproof104°FGeneral Application€898.24
MARATHON MOTORS 5KCR49PN3012X Motor 3/4 1/4 Hp 1725/1140 Rpm 208-230v | AD6NYF 46N402 / C486 5KCR49PN3012X208-230V AC3/4 hp, 1/4 hp56Horizontal1 7/8"Open Dripproof40°CGeneral Application€777.23
MARATHON MOTORS 5KCR49SN3009 Motor 1 1/3 Hp 1725/1140 Rpm 115v None | AD6NYJ 46N405 / C475 5KCR49SN3009115V AC1 1/3 hp56Horizontal1 7/8"Open Dripproof40°CGeneral Application€951.96
MARATHON MOTORS 5KCR49SN3009X Motor 1 1/3 Hp 1725/1140 Rpm 115v Auto | AD6NYK 46N406 / C1478 5KCR49SN3009X115V AC1 1/3 hp56Horizontal1 7/8"Open Dripproof104°FGeneral Application€990.85
MARATHON MOTORS 056C17D2074 B319 Single Phase Motor | AJ2KVC 46N371 / B319 056C17D2074115/208-230V AC3/4 hp56Horizontal1 7/8"Open Dripproof104°FGeneral Application€399.76
