MARATHON MOTORS 056C11G5303 Hazardous Location Motor 1-phase Epfc 1/4 Hp T3b | AF6JUE 19RW09 / K033

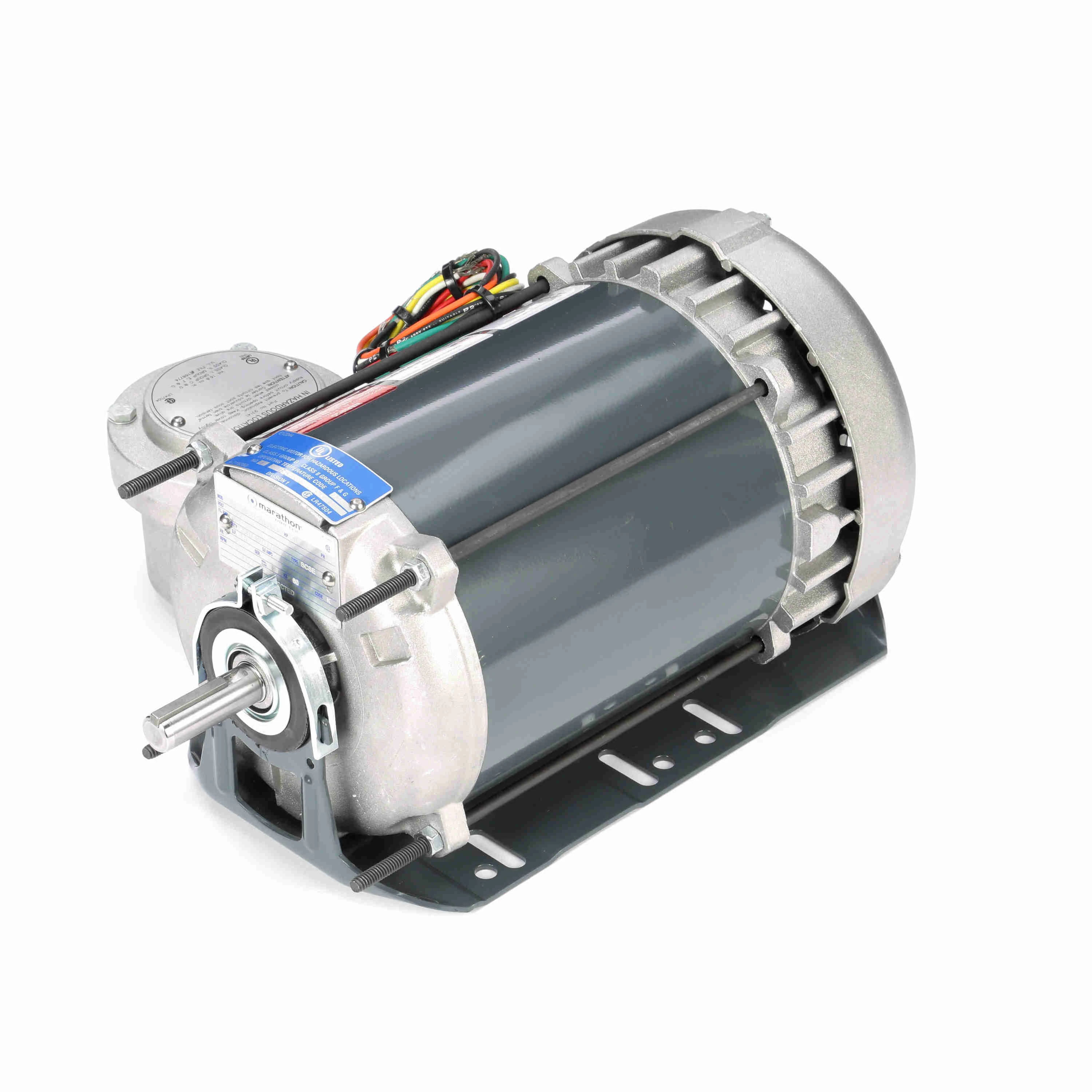

LEESON 056C11G5303 K033 / 56C11G5303H Explosion Proof Motor, 0.25 HP, 1 Phase, 60 Hz, 115 V, 1200 RPM

Item: AF6JUE Model: 056C11G5303Cross Ref: 19RW09 / K033 / 56C11G5303H
In Stock

Get it by Tuesday, Oct 8

€838.45 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemHazardous Location Motor
BearingsBall
DutyContinuous
Efficiency GroupStandard
Frame56
Frame MaterialRolled Steel
Full Load Amps5.4
Hazardous Location Class1 D / 2 F,G
HP1/4
Hz60
Insulation ClassB
Lead Length6" to 24"
Length Less Shaft12 9/16"
Max. Ambient Temp.40 Degrees C
Motor ApplicationHazardous Locations
Motor DesignCapacitor-Start
Motor Enclosure DesignHazardous Location
Motor Mounting TypeCradle Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionAuto
Nameplate RPM1140
NEMA DesignNone
Nominal Efficiency47%
Overall Length14.437"
Phase1
RPM Range1101-1200
Service Factor1.00
Shaft Dia.5/8"
Shaft Length1 15/16"
Temp. CodeT3B
Thermal ProtectionAuto
Voltage115

Shipping Info:

Ship weight (kg) 13.95
Ship height (cm)20.62
Ship length (cm)41.61
Ship width (cm)26.67
HS code8501404040
Country of OriginMX
