MARATHON MOTORS 056B17T5303 Belt Drive Motor Capacitor-start/capacitor-run 1 Hp | AF6NFB 19YV64 / X912

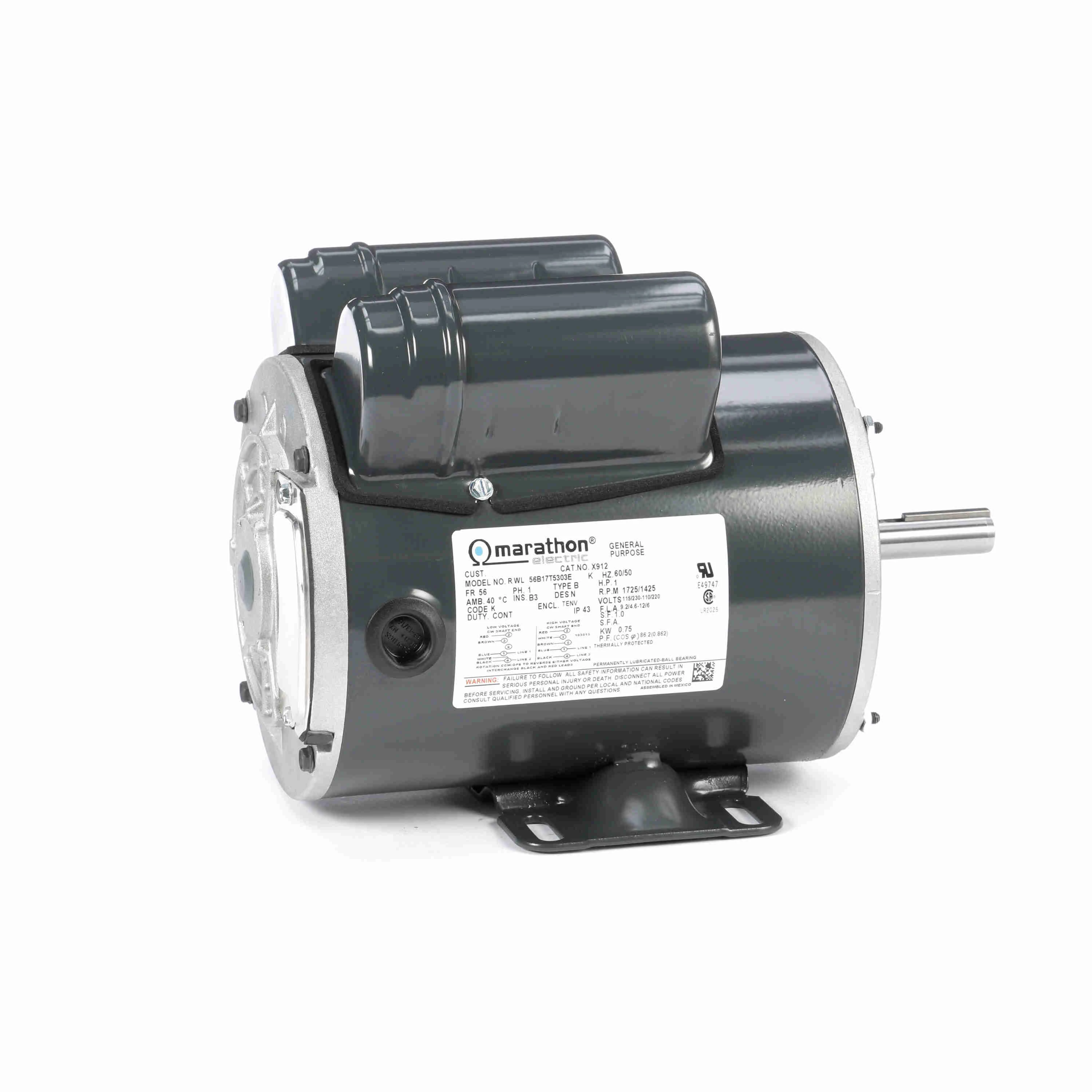

LEESON 056B17T5303 X912 / 56B17T5303E General Purpose Farm Duty Motor, 1 HP, 1 Phase, 60/50 Hz, 115/230 and 110/220V, 1800 RPM

Item: AF6NFB Model: 056B17T5303Cross Ref: 19YV64 / X912 / 56B17T5303E
In Stock

Get it by Tuesday, Dec 31

€474.45 /unit
Add To Cart
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemPoultry Fan Motor
BearingsBall
Body Dia.6.125"
DutyContinuous
Frame56
Frame MaterialRolled Steel
Full Load Amps9.2/4.6
HP1
Hz50/60
Insulation ClassB
Length Less Shaft9.125"
Max. Ambient Temp.40 Degrees C
Motor ApplicationH Vac/R
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeRigid Base
Motor Shaft RotationCW/CCW
Motor Sub ApplicationBelt Dr Fan/Blower
Motor Thermal ProtectionAuto
Nameplate RPM1725
Nominal Efficiency81.1%
Number of Speeds1
Overall Length11.437"
Phase1
RPM Range1701-1800
Service Factor1.0
Shaft Dia.5/8"
Shaft Length2 5/16"
Voltage115/230

Shipping Info:

Ship weight (kg) 14.4
Ship height (cm)19.69
Ship length (cm)33.66
Ship width (cm)24.43
HS code8501406040
Country of OriginMX

Product Variants

ProductModelBody Dia.FrameFull Load AmpsHPHzLength Less ShaftMotor ApplicationMotor DesignPrice
MARATHON MOTORS 056B17T20 Belt Drive Motor Capacitor-start/capacitor-run 1/2 Hp | AF6NFA 19YV63 / X913 056B17T205-11/16"564.6/2.31/2608.5"H VAC/RCapacitor-Start/Run€372.55
MARATHON MOTORS 5KCP49UN9838S Farm Duty Motor Tenv 1/2 Hp 850 Rpm | AF8BJF 24TT48 / F781 5KCP49UN9838S-56Y3.7-3.61/26010"Farm DutyPSC€384.50
