80/20 40-4004-4M Framing Extrusion T-slotted 40 Series | AF8ZUU 29NZ91

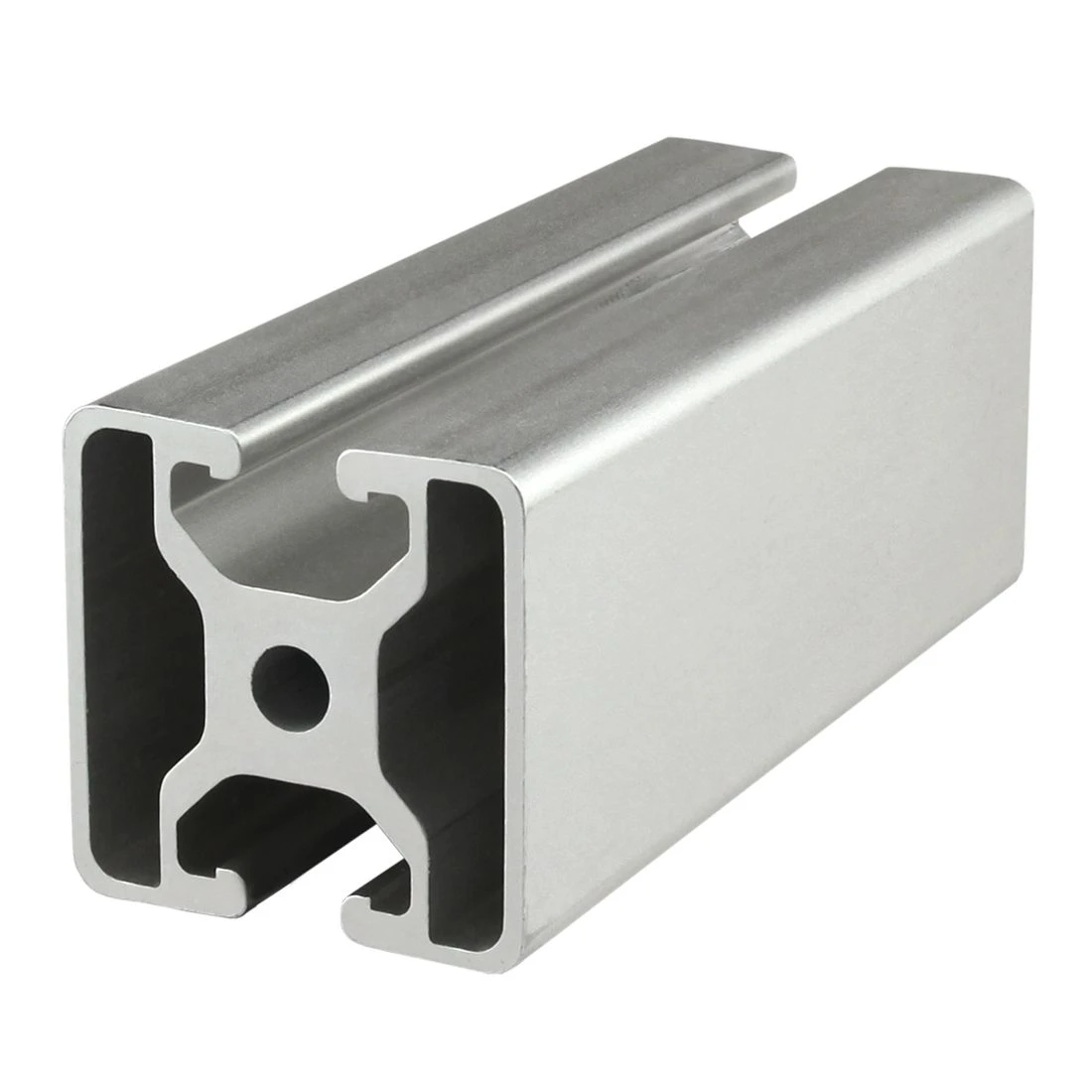

80/20 40-4004-4M Extrusion, Two Opposite T-Slot, 4m Length, Aluminum, Clear

Item: AF8ZUU Model: 40-4004-4MCross Ref: 29NZ91
Limited Availability

Due to weight and dimension restrictions, please request a shipping quote

€213.82 /unit
Request a Quote

Payment Options Available

Delivery Options Available

Product Specifications:

ItemFraming Extrusion
Bore Dia.6.8mm
ColorClear
Drop Lock2 Deg.
FinishAnodize
Grade6105-T5
Height40mm
Length4m
MaterialAluminum
Modulus of Elasticity70326.5 N/sq. mm
Moment of Inertia - IX8.6050 cm4
Moment of Inertia - IY8.043 cm4
Slot Width8.13mm
Surface Area5.954 sq. cm
TypeT-Slotted
Weight/Ft.1.1812 Lb.
Width40mm
Yield Strength241.1 N/ sq. mm

Shipping Info:

Ship weight (kg) 6.43
Ship height (cm)4.06
Ship length (cm)401.32
Ship width (cm)4.06
HS code7610900050

Product Variants

ProductModelLengthWidthHeightGradeMoment of Inertia - IXMoment of Inertia - IYPrice
80/20 40-4002-4M Framing Extrusion T-slotted 40 Series | AF8ZUR 29NZ89 40-4002-4M4m40mm40mm6105-T58.6303 cm48.6303 cm4€213.82
RFQ
80/20 40-4012-4M Framing Extrusion T-slotted 40 Series | AF8ZUV 29NZ92 40-4012-4M4m40mm120mm6105-T5306.3198 cm436.8008 cm4€647.87
RFQ
80/20 40-4083-LITE-4M Framing Extrusion T-slotted 40 Series | AF8ZUY 29NZ95 40-4083-LITE-4M4m40mm80mm6105-T568.1908 cm416.4684 cm4€380.60
RFQ
80/20 40-4001-3M T-Slot Framing System | CN2QPG 40-4001-4M / 29NZ88 40-4001-3M------€148.19
80/20 40-4002-3M T-Slot Framing System | CN2QPH 40-4002-4M / 29NZ89 40-4002-3M------€152.87
80/20 40-4003-3M T-Slot Framing System | CN2QPJ 40-4003-4M / 29NZ90 40-4003-3M------€150.23
80/20 40-4004-3M T-Slot Framing System | CN2QPK 40-4004-4M / 29NZ91 40-4004-3M------€152.26
